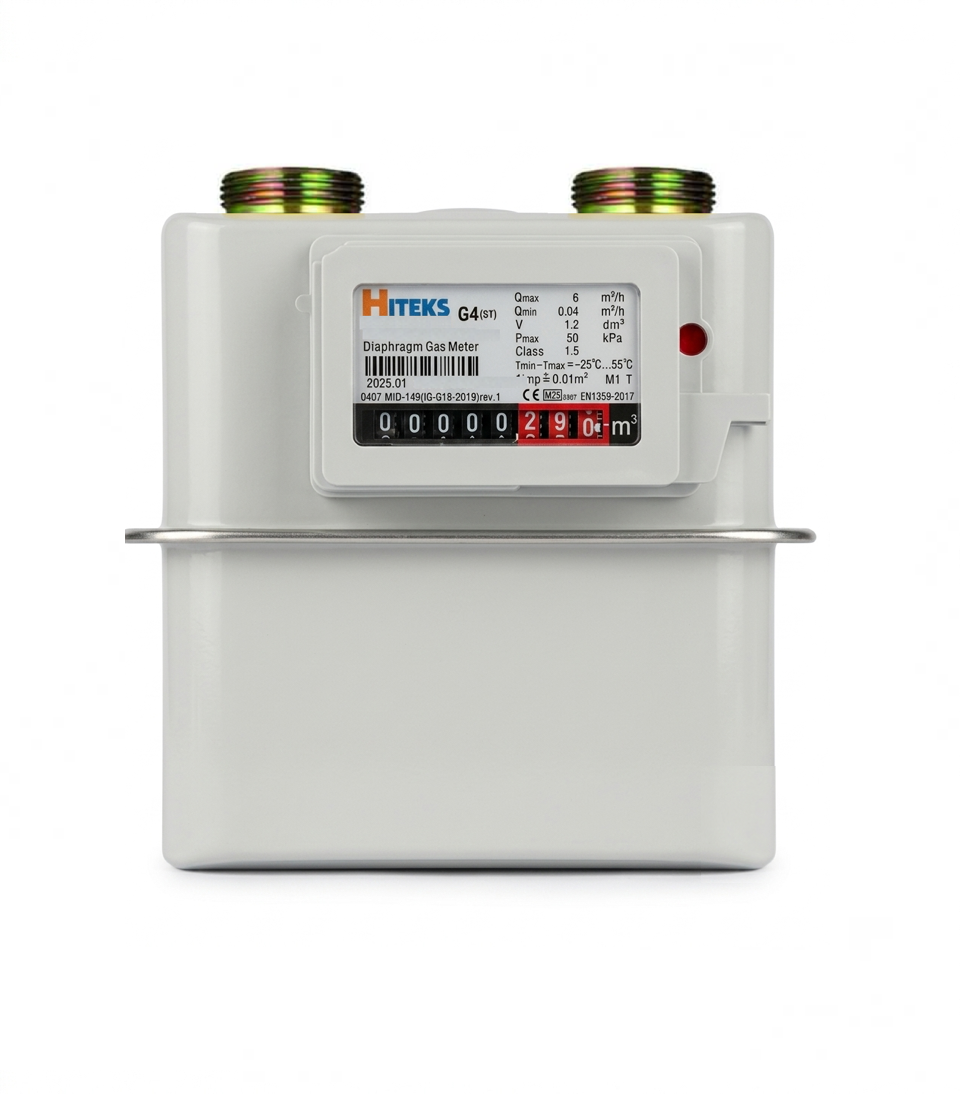

GM - Residential Diaphragm Gas Meter
Key Features:
- Accurate Gas Consumption Measurement
- Circular Buffer Storage intervals for a precise gas consumption profile
- Remote Data Transmission via 4G
- Customizable Data Logs: Choose from daily, weekly, monthly, or custom log intervals
- Long-Lifetime Battery on board
Benefits:
- Automatic Remote Reading
- Real-Time Monitoring of gas consumption
- Retrofit Installation compatible with a wide range of existing gas meters and rotary-turbine meters
GM - Residential Diaphragm Gas Meter
Versions
GM.001.000
DIAPHRAGM GAS METER 110mm G4 1”1/4 STEEL BODY
GM.001.000.10
DIAPHRAGM GAS METER 110mm G4 1”1/4 ALUMINUM BODY
GM.001.099
REED PULSE FOR GM
GM is a residential diaphragm gas meter with advanced technology, manufacturing, and test equipment. The gas meters offer high accuracy, high reliability, and stable measurement performance included anti-reverse and gas theft protection.
GM technology has reached an internationally advanced level and complies with the requirements of EN1359 and OIML.
The gas meter is equipped with internal temperature compensation via a bimetallic element, ensuring that the diaphragm stroke adapts to the current gas temperature.
| Gas Type | Natural gas, LPG, Hydrogen |
| Gas group family | 2: H, L, E (EN 437) |
| 3: P (EN 437) | |
| Accuracy class (MID) | Class 1,5 |
| Flow rates | 0.016 m³/h to 6 m³/h |
| Cyclic Volume | 1.2 liters |
| Max. reading | 99999.999 m³ |
| Max. permissible errors | Qmin ≤ Q < 0,1 Qmax: ±3% |
| 0,1 Qmax ≤ Q < Qmax: ±1,5% | |
| Max. working pressure | Steel body 500 mbar |
| Aluminium body 2 bar | |
| Std temperature for gas volume | +15 °C |
| Gas temperature | Da -25 °C a +55 °C |
