HYSPI SMART PLUG-IN

Key Features:

  • Fully integrated with many gas meter types (domestic and commercial)
  • Tamper detection sensors for attempts with magnets, shaking, or hitting
  • Replaceable batteries enabling 10–12 years of operation
  • Internal antenna with option for external antenna
  • Suitable for indoor and outdoor installation
  • Electronic circuit designed for severe environmental conditions

Benefits:

  • Smart automatic meter reading
  • Total volume at base conditions for each tariff zone (F1, F2, F3)
  • Current date and time
  • Automatic data export to the customer billing system
  • High level of security

Reference standards:

Directive EMC 2014/30/EU
EN 61000-4-2
EN 61000-4-3
Directive RED 2014/53/EU
EN 301 489-1
EN 301 489-3
EN 301 489-7
EN 301 511

Compliant with:

UNI/TS 11291
EN 13757
EN 12405
EN 62056-21
EN 16314

HYSPI SMART PLUG-IN

Versions

HYSPI gas meter reed pulse AMR for ELSTER (A0) + -

HYSPI gas meter reed pulse AMR for ITRON ITRON (A1) + -

HYSPI - Modulo AMR con ingresso a impulsi Reed per contatori gas STANDARD (A2) + -

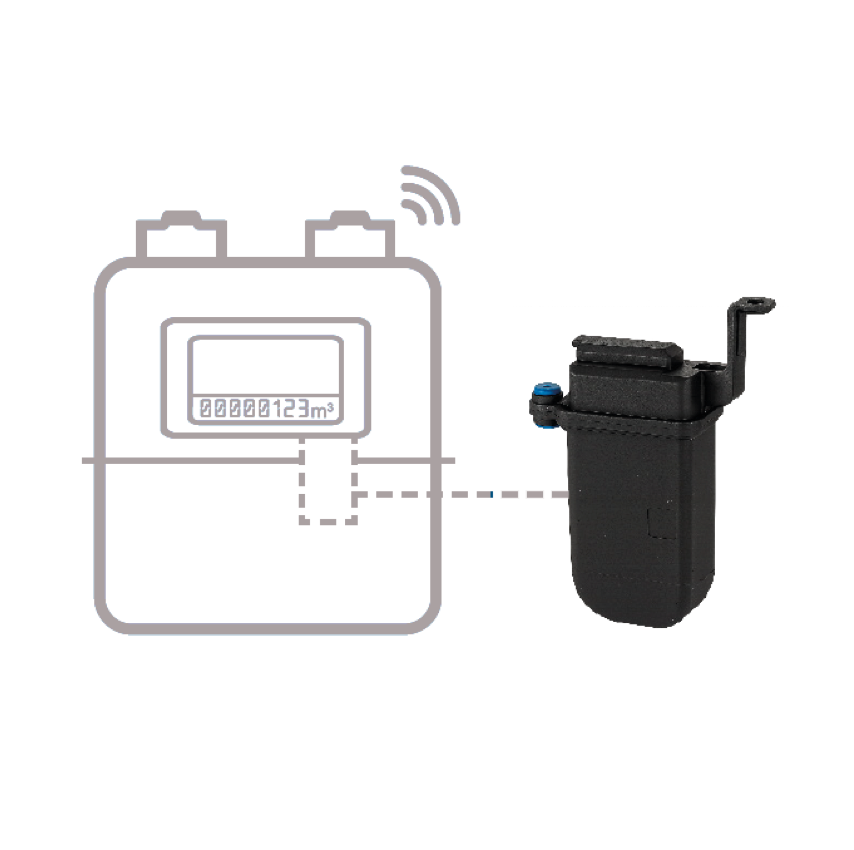

The HYSPI is an AMR module mounted on existing mechanical (diaphragm) gas meters or connected to the impulse output of commercial meters and volume correctors using cable connectors

The device communicates the gathered data on the gas flow volume to the CLOUD service in the form of a load profile at prescheduled time spans (typically, consumption per hour is transferred every 24 hours).

The interface system stores the data securely in the cloud and enables the end user to export it (automatically), view it, and analyse it (graphs, tables, etc.).

Alarms due to tampering events or other extraordinary events are communicated immediately

The whole system works completely automatically and can be parameterised remotely (load profile, communication schedule, alarm thresholds, data export, etc.).
Power SupplyPrimary Lithium battery
Operating temperature-40°C.. +70°C
Mounting systemCompatible with a wide range
of existing meter systems

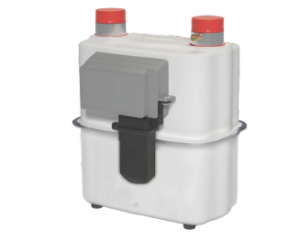

A0 / ELSTER / BK4

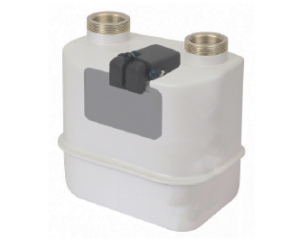

A1 / ITRON, ACTARIS, SCHLUMBERGER, ROMBACH / G4 RF1

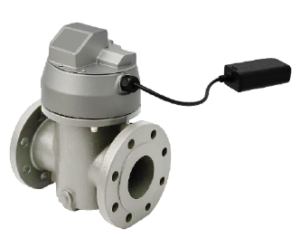

A2 / ROTARY, TURBINE / REED PULSE (1 meters cable included)
SIMMicrosim or Sim On Chip eUICC compliant
Hazardous certificationClassification IECEx II 3G Ex ia IIB T3 Ga
AntennaEMBEDDED
EXTERNAL with 3 meters cable antenna
GSM technology connectivityNB-IoT
LTE Cat 1 bis + fallback 2G
LTE Cat M1 + NB-IoT + fallback 2G
Battery life time*Weekly Report Period
10+ years
*Extimated battery life time depending from optimal GSM signal and average annual temperature >20°C
Enclosure type & ratingABS V0 UV resistant
IP68 IK08
