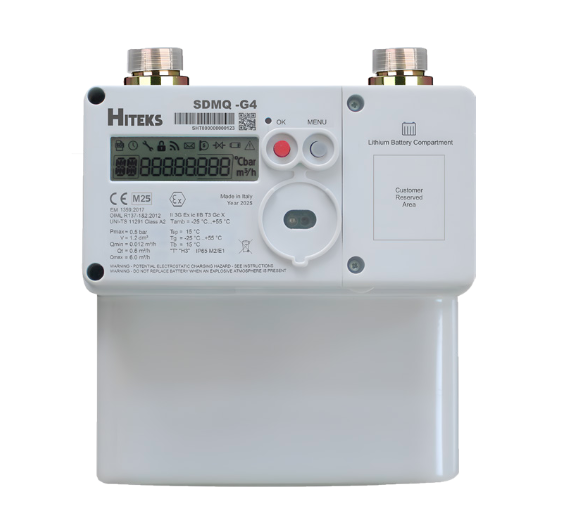

SDMQ – Smart Diaphragm Gas Meter
Key Features:
- Integrated temperature sensor
- Integrated shut off valve
- High corrosion-resistance
- Indoor and outdoor installation
- Electronic circuit designed for severe environment areas
- Custom application by integrated valve, prepayment and multi tariff management
- Low losses and low flow measurement
Benefits:
- Smart automatic meter reading
- Total volume at base conditions, at alarm conditions, for each tariff zone (F1, F2, F3)
- Current date/time
- Meter status (not configured, normal, maintenance)
- Billing period historical data (last 10 billing periods)
- Metrological event logbook (capacity of 192 events)
Reference standards:
Directive EMC 2014/30/EU
EN 61000-4-2
EN 61000-4-3
Directive RED 2014/53/EU
EN 301 489-1
EN 301 489-3
EN 301 489-7
EN 301 511
Compliant with:
MID 2014/32/EU
OIML R137 1&2
UNI/TS 11291
EN 13757
EN 12405
EN 62056-21
EN 16314
SDMQ – Smart Diaphragm Gas Meter
Versions
SDMQ - SMART GAS METER G4 1” 1/4 110mm DIAPHRAGM / VALVE - STEEL BODY
SDMQ - SMART GAS METER G4 1” 1/4 110mm DIAPHRAGM / VALVE - ALUMINIUM BODY
SDMQ-G4 is designed and manufactured to measure the volume of Natural Gas and Liquefied Petroleum Gas (LPG).
The measurement technology is based on a traditional diaphragm meter, which also integrates a temperature sensor for volume conversion and permits achieving high accuracy and performance.
The Smart Gas Meter satisfy the new generation of smart devices to fulfill all requirements of European and International standards MID-OIML.
The type of gas and any impurity do not interfere with the performance of this device, mainly used in low-pressure gas distribution networks for residential natural gas and LPG.
Fully compliant for Hydrogen NG-H2 blending.
| Gas Type | Natural gas, LPG, Hydrogen |
| Gas group family | 2: H, L, E (EN 437) |
| 3: P (EN 437) | |
| Accuracy class (MID) | Class 1,5 |
| Lowest flow rate measurable (Qstart) | 0,006 m³/h |
| Minimum flow rate (Qmin) | 0,016 m³/h |
| Transitional flow rate (Qt) | 0,6 m³/h |
| Maximum flow rate (Qmax) | 6,0 m³/h |
| Measurement accuracy | Qmin to Qt → ±3.0% |
| Qt to Qmax → ±1.5% | |
| Std temperature for gas volume | +15 °C |
| Maximum pressure | Steel 500 mbar |
| Aluminium 2 bar | |
| Load loss | ≤ 2 mbar |
| Gas temperature | da -25 °C a +55 °C |
| Ambient temperature | da -25 °C a +55 °C |
| Storage temperature | da -25 °C a +60 °C |
| Mechanical environment class | M1 |
| Electromagnetic environment class | E1 |
| Resistance to high ambient temperatures | T |
| Relative humidity | 0% to 95% non-condensing |
| Electrovalve (EN 16314) | Integrated valve with status signal Maximum leakage: 120 cc/h at Pin = 500 mbar |
| User interface (UNI/TS 11291.6) | LCD display (icons and alphanumeric characters); volume display in m³ (8 digits, 3 decimals); 2 control buttons |
| Local interface | ZVEI optical port compliant with IEC 1170 (EN 62056-21); communication protocol compliant with UNI/TS 11291 (DLMS/COSEM). |
| GSM Communication module (PP4) | 4G LTE CAT 1 BIS or 4G LTE CAT M1 or 4G NBIOT |
| Communication protocol in accordance with UNI/TS 11291 (DLMS/COSEM) |
|
| LoRaWAN communication module | Radio module 100mW (20dBm) |
| Communication protocol LoRaWAN (DLMS/COSEM) |
|
| Communication protocol | DLMS AES-128-GCM (only in GSM & LoRaWAN) |
| WIRED Modbus communication module | Communication protocol Wired Modbus RTU RS485 |
| Estimated battery life (at normal reference conditions) | Metrological battery: ≥15 years |
| Communication battery*: ≥ 8 years | |
| Enclosure type & rating | PC V0 UV resistant IP65 IK08 |
| Body | Steel or Aluminium |
| Hazardous certification | ATEX Zone 2 (II 3G Ex ic IIB T3 Gc X) |
